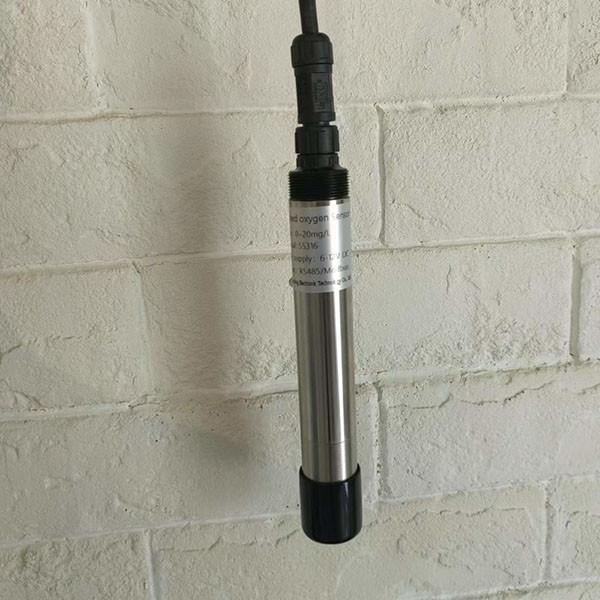

Digital Optical Dissolved Oxygen Sensor Electrode Online Oxygen Sensor IP68

Name: Digital Optical Dissolved Oxygen Sensor Electrode Online Oxygen Sensor IP68
Brand: Desun Uniwill
Price: 280.00 USD

Quality Digital Optical Dissolved Oxygen Sensor Electrode Online Oxygen Sensor IP68 wholesale

Brand Name : Desun Uniwill

Model Number : DS-380

Place of Origin : China

MOQ : 0~100 pcs

Price : $280.00 - $400.00/ Piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 0~1000 pcs

Delivery Time : 7~ 15 working days

Packaging Details : Carton packaging

Certification : CE

Model : DS380

Principle : Optical

Measuring range : 0~20mg/L or 0-200% saturation

Response time : 3 seconds

Accuracy : 1%

Protection level : IP68

Installation : Submersible

Temperature sensor : NTC

Temperature range : 0~50°C

Temperature accuracy : ±0.2°C

Output : RS-485, MODBUS protocol

Power supply : DC 6~12V, current <50mA

Size : Φ26*155 mm

cable length : Default 5 m

Housing material : SS316/Titanium alloy

Contact Now

Digital Optical Dissolved Oxygen Sensor Excellent Online Oxygen Electrode

1. Feature

Digital sensor, RS-485 output, support MODBUS. Optional automatic cleaning brush to eliminate the impact of oil on the measurement, this product uses a unique optical and electronic filtering technology to eliminate the impact of ambient light on the measurement, not affected by suspended solids.

2. Application

The fluorescence dissolved oxygen sensor uses a new generation of fluorescence lifetime technology. we independently develop high performance fluorescent materials. No anaerobic consumption, no flow restrictions, no electricity required. The solution requires no maintenance and calibration, no hydrogen sulphide, and excellent stability. Built-in temperature sensor and automatic temperature compensation. The RS485 output is suitable for networks without a controller.

Item	Parameters
Model	DS380
Principle	Fluorescence analysis method
Measuring range	0~20mg/L or 0-200% saturation
Response time	3 sec
Accuracy	1%
Protection level	IP68
Installation	Submersible
Temperature sensor	NTC
Temperature range	0~50°C
Temperature accuracy	±0.2°C
Output	Support RS-485, MODBUS protocol
Power supply	DC 6~12V, current <50mA
Size	Φ26*155 mm
Probe cable length	Default 5 m, customized 10m, 15 m and 30 m cable
Fluorescent cap life	1 year
Maximum working pressure	3bar
Housing material	SS316/Titanium alloy

Digital Optical Dissolved Oxygen Sensor Electrode Online Oxygen Sensor IP68
